Actual flap angles 140
Posted: Thu Oct 23, 2025 4:43 pm
by 6597

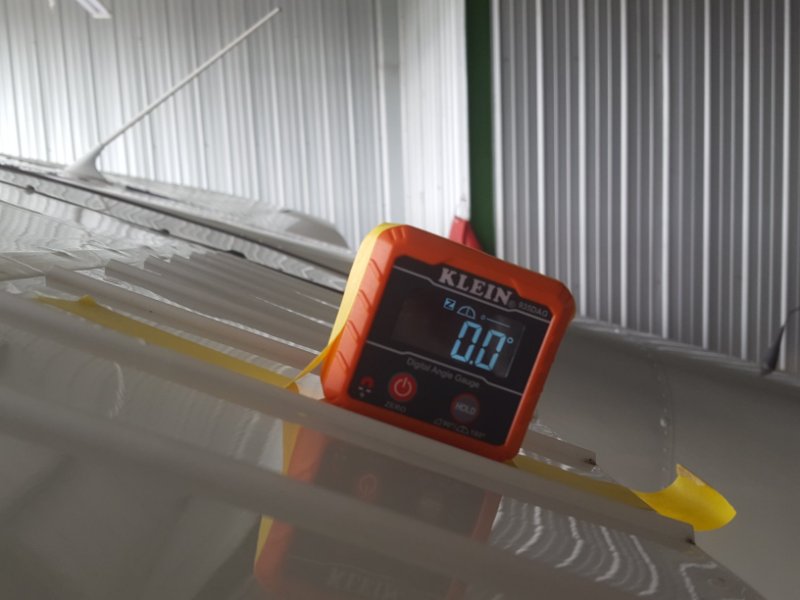

Just for entertainment purposes and curiousity, I took my digital inclinometer and measured the actual click values on the flap handle (5 clicks).
5.1 degrees
12.6
21
29.1
37.5
- DigitalInclinometer.jpg (57.93 KiB) Viewed 1125 times
Re: Actual flap angles 140
Posted: Thu Oct 23, 2025 8:00 pm
by jetlagged
Thanks for doing this. I was wondering and couldn't find it anywhere.
Re: Actual flap angles 140
Posted: Thu Oct 23, 2025 8:40 pm
by 6643
You're supposed to adjust the cable so that the fifth position is 40 degrees down from faired. Everything less is "what it is".
Re: Actual flap angles 140
Posted: Thu Oct 23, 2025 8:45 pm
by 6597
You're supposed to adjust the cable so that the fifth position is 40 degrees down from faired. Everything less is "what it is".
Looks like I have a project for Friday. I figured something like that with all the weird numbers. I will report back....
Re: Actual flap angles 140
Posted: Fri Oct 24, 2025 4:34 pm
by 6597
OK, here ya go....
0
7.5
15.2
23.4
31.7
40
I suspect the ratchet teeth on the flap handle over the years get a little worn down, who knows what the actual values might be when things were 'new'. I've got the later style 'button' handle FWIW.
