Unless I am missing something the 120/140 parts manual offered on the Association
Resource page almost totally neglects detail diagram of cockpit flap control parts.
Very sparse.
https://www.cessna120140.com/Forum2018/ ... ew&id=4799
Cockpit Flap Control Parts
Forum rules
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
-
vinceo
- Posts: 19
- Joined: Sat Apr 27, 2024 9:59 am
- Name: Vince
- Location: Louisiana
- Aircraft Type: 1946 C-140
- Occupation-Interests: Retired.
- Contact:
Cockpit Flap Control Parts
- Attachments
-

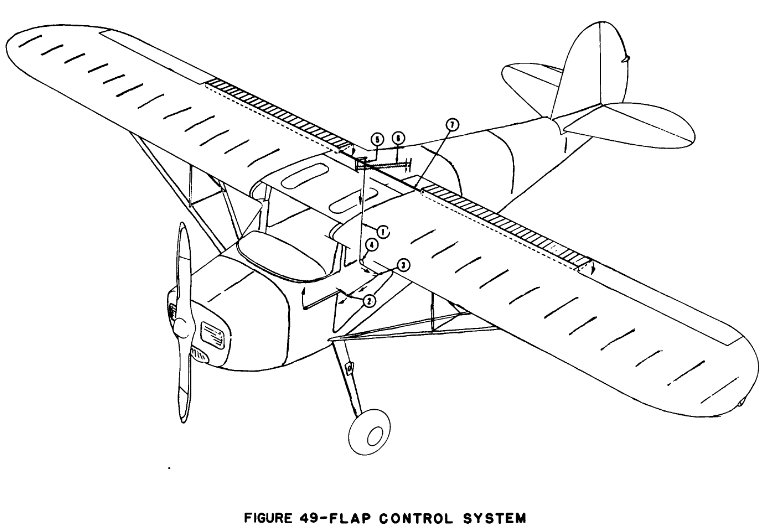

- Screenshot 2025-05-02 at 17-11-07 a - illustrated-parts-catalog-120140.pdf.png (83.92 KiB) Viewed 3937 times
-
6597
- Posts: 427
- Joined: Tue May 01, 2018 7:00 am
- Name: David Sbur
- Location: Vancouver WA KVUO
- Aircraft Type: '46 140 0-200A
- Occupation-Interests: Agriculture
- Contact:
Re: Cockpit Flap Control Parts
You are correct. There are 2 different flap control handles, a twisty one I've never seen and a push button one that I have. There was a serial number change at 10070 for the cable from the flap handle to the torque tube belcrank, perhaps that's when the handle change occured. Someone more smarterer will chime in shortly...
-
6643
- Posts: 2564
- Joined: Tue May 01, 2018 7:00 am
- Name: John C
- Location: KLCI, NH
- Aircraft Type: 1946 C140/C90
- Occupation-Interests: A&P, semi-retired
- Contact:
-
vinceo
- Posts: 19
- Joined: Sat Apr 27, 2024 9:59 am
- Name: Vince
- Location: Louisiana
- Aircraft Type: 1946 C-140
- Occupation-Interests: Retired.
- Contact:
Re: Cockpit Flap Control Parts
Thank you. that did it!
i just bought my 140 last May 2024, on annual I opened the flap
control cover on floor and it was packed with dirt and lent etc.
from aeons of neglect. The trim wheel cover and assembly was
the same. Made me wonder about other things. Going thru it
inch by inch now!
